Ultra-Thin foils and Tapes
AZIENDA METALLI LAMINATI SpA
AZIENDA METALLI LAMINATI SpA was founded in 1967 by the Colonna family.

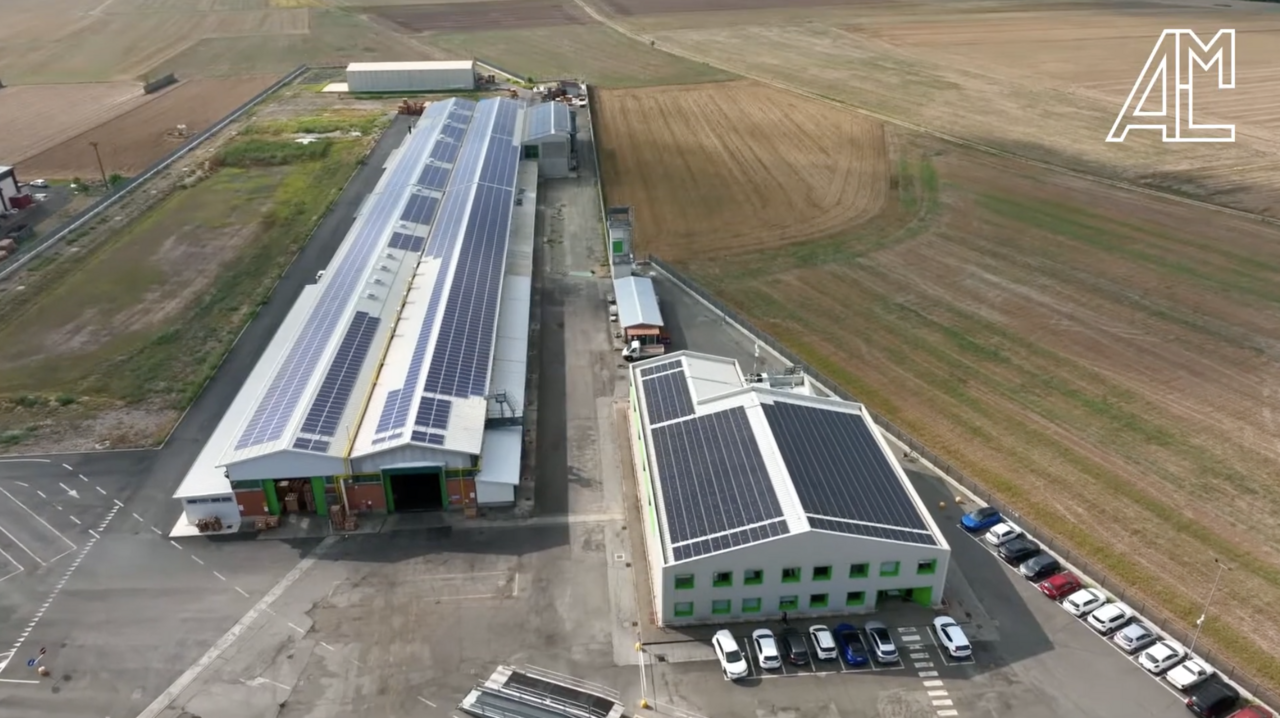

The company is located in Quargnento (province of Alessandria) in the centre of the industrial triangle Milan – Turin – Genoa.
AML produces thin copper foil and is specialized in thicknesses below 100 microns.
AML is certified according to ISO 9001 and ISO 14001.
Cu-OF (C102)
| Thicknesses 0.040 – 0.050 mm (0.0015” – 0.002”) 0.051 – 0.3 mm (0.0021” – 0.012”) | Max. widths 520 mm (20.5”) 540 mm (21.25”) | Temper Soft R220 |
Cu-ETP (C110)
| Thicknesses 0.040 – 0.050 mm (0.0015” – 0.002”) 0.051 – 0.3 mm (0.0021” – 0.012”) | Max. widths 520 mm (20.5”) 540 mm (21.25”) | Temper Soft R220 |
C1453 (Cu Te 0.02 Sn 0.02)
| Thicknesses 0.040 – 0.3 mm (0.0015” – 0.012″) | Max. widths 500 mm (19.7”) | Temper Soft R220 Half hard R300 Hard R390 |
Copper tape for electromagnetic shielding of medium and high voltage cables
| Copper grade: | Cu-ETP (C110) |
| Typical thicknesses: | 0.05 to 0.25 mm (0.002’’ to 0.010’’) |
| Min. width: | 10 mm (0.4’’) |
Brazing foil for Brazed Plate Heat Exchangers
| Copper grade: | Cu-OF (C102) |
| Typical thicknesses: | 0.04 to 0.08 mm (0.0015’’ to 0.003’’) |
| Width: | max. 540 mm (21.25’’) |

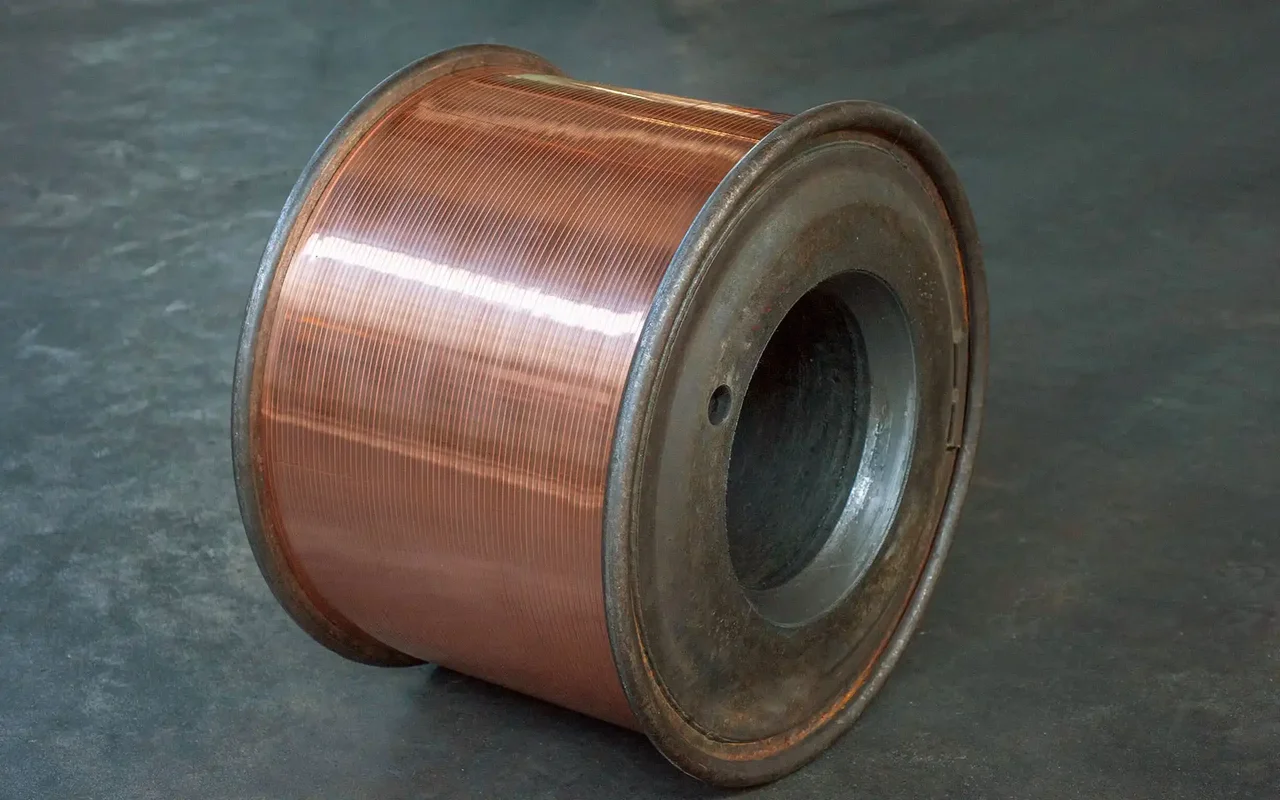

Copper “tape from the wire” for the Cable Industry
| Copper grade: | Cu-ETP (C110) |
| Typical dimensions: | 4 x 0.15 5 x 0.20 7 x 0.25 7 x 0.30 (Unfortunately this product is not available in North America) |
| Tape length: | up to 43 km (up to 27 miles) |
Copper foil for fin type Heat Exchangers
| Copper grade: | Cu-OF (C102) |
| Typical thicknesses: | 0.1 to 0.3 mm (0.004’’ to 0.012’’) |
| Width: | max. 540 mm (21.25’’) |
Brazing foil in C1453 for radiators
| Copper grade: | C1453 |
| Typical thicknesses: | 0.04 to 0.1 mm (0.0015’’ to 0.004″) |
| Width: | max. 500 mm (max. 19.7″) |
